SERIES BL9

Mechanism for insertion

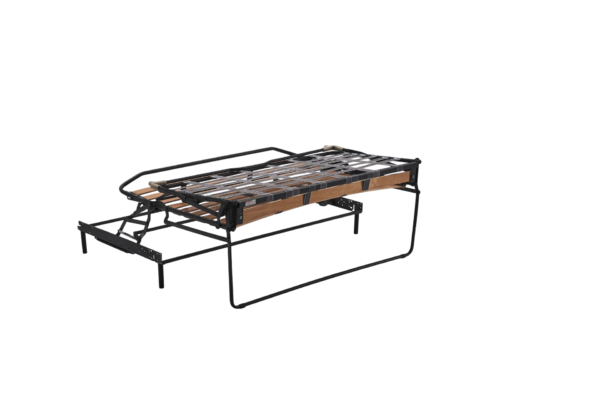

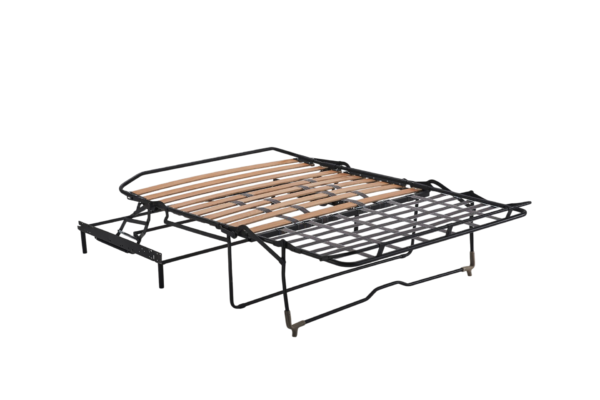

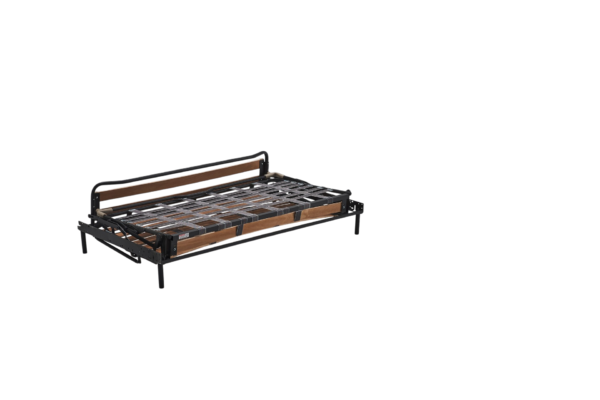

Sofa bed mechanism with front opening in two movements
by extracting the seat, which allows the use of 16 cm high feet,
to create sofa beds with contemporary lines and a deep seat.
Wooden slatted base. Can accommodate 10×200 cm mattresses.

Construction and Features:

  • High resistance furniture tube construction, oven painted
    with epoxy powder.

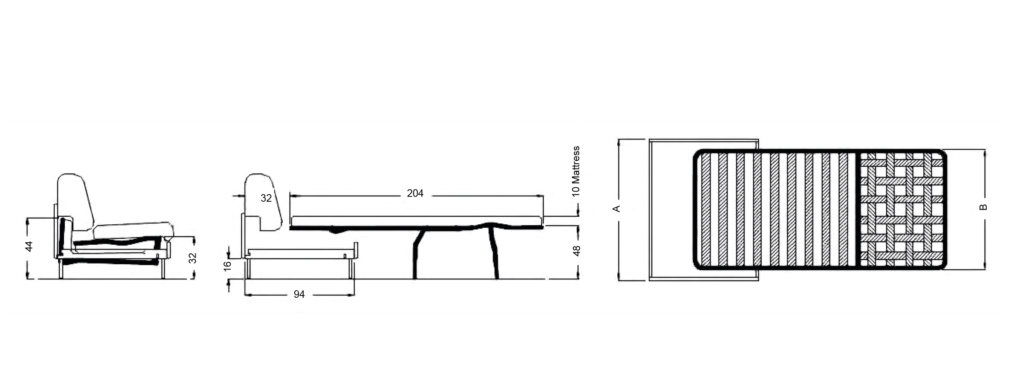

MEASURES/SIZE

A B Mattress size M3 Kg
87 71 65x200x10 0,32 28
142 126 120x200x10 0,52 36
162 146 140x200x10 0,59 39
182 166 160x200x10 0,66 42
