SERIES LAMP

SERIES LAMP

Revolving / Flip-Over Mechanism

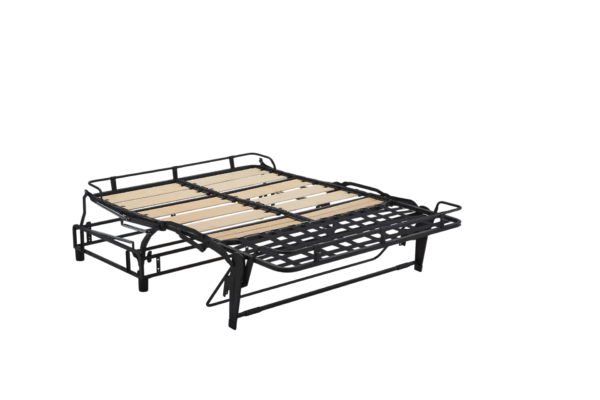

The transformation into a bed is achieved with a single movement without removing the seat and back cushions. Solid and comfortable, with its electro-welded mesh or wooden slatted base, it is suitable for the creation of sofa beds for everyday use, both for residential and contract use. Seat with elastic straps. It can accommodate 14×200 cm mattresses.
Feet H 8 cm.

Construction and Features:

  • Construction in high-strength cold-drawn furniture tube, oven-painted with epoxy powder.
  • Load-bearing structure equipped with bayonet fittings for the assembly of armrests and headboard.
  • Optional: full backrest, split or with pillow compartment, container peninsula, izymove, front attachment plate.

MEASURES/SIZE

A B Mattress size M3 Kg
97 80 75x200x14 0,43 34
122 105 100x200x14 0,54 37,5
137 120 115x200x14 0,61 42
142 125 120x200x14 0,63 43
162 145 140x200x14 0,72 48
182 165 160x200x14 0,80 50
202 185 180x200x14 0,89 53
